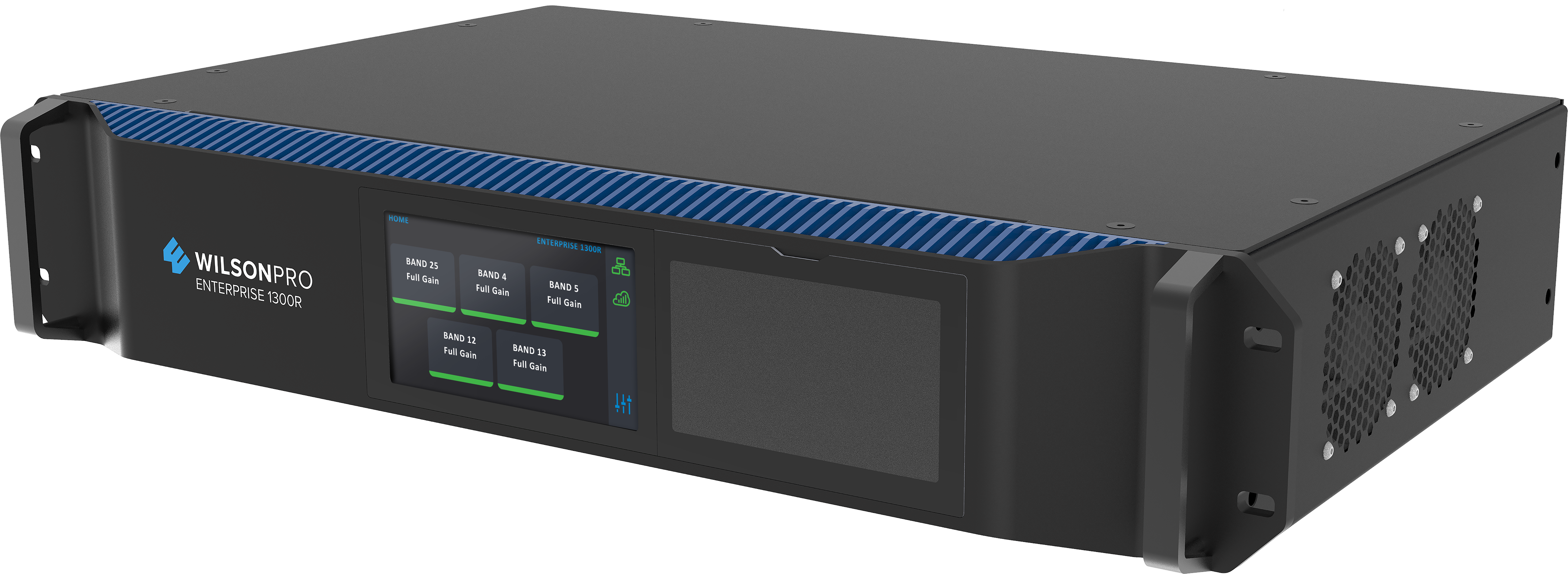

Enterprise 1300R

Enterprise 1300R

Enterprise 1300R



Enhances cell coverage area up to 40,000 sq.ft.

  • 26 dBm Max Uplink
  • Up to 70 dB Gain
  • Remote access through WilsonPro Cloud
  • Multi-Tower Targeting Technology

> Contact Sales or call 801-210-1480

EKHO COMM is an authorized partner and installation manager for the Enterprise 1300R in-building cellular amplifier that represents the latest in cell signal boosting technology—starting with its all-new Multi-Tower Targeting technology.

Depending on cell tower locations, it can run up to three outdoor antennas; each dedicated to a specific frequency band to collectively amplify signals from multiple towers. Based on user need or preference, Enterprise 1300R also utilizes “common mode” as a default; requiring only a single outdoor antenna to deliver enhanced cell signal coverage within an area up to 40,000 sq. ft per amplifier.

With wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud for remote functionality, integrators and building managers can remotely manage, monitor, and adjust the Enterprise 1300R using a smartphone or tablet. Immediate notifications are received via email or text. Designed to reach towers at greater distances, it also produces up to 26 dBm in uplink and up to 17 dBm in downlink—making it one of the most powerful amplifiers within its price range.

Designed for rack-mount configuration. A wall-mount option available (Enterprise 1300.)

Made for 5G – WilsonPro’s customizable cellular signal repeater solutions support the latest in 5G technology.

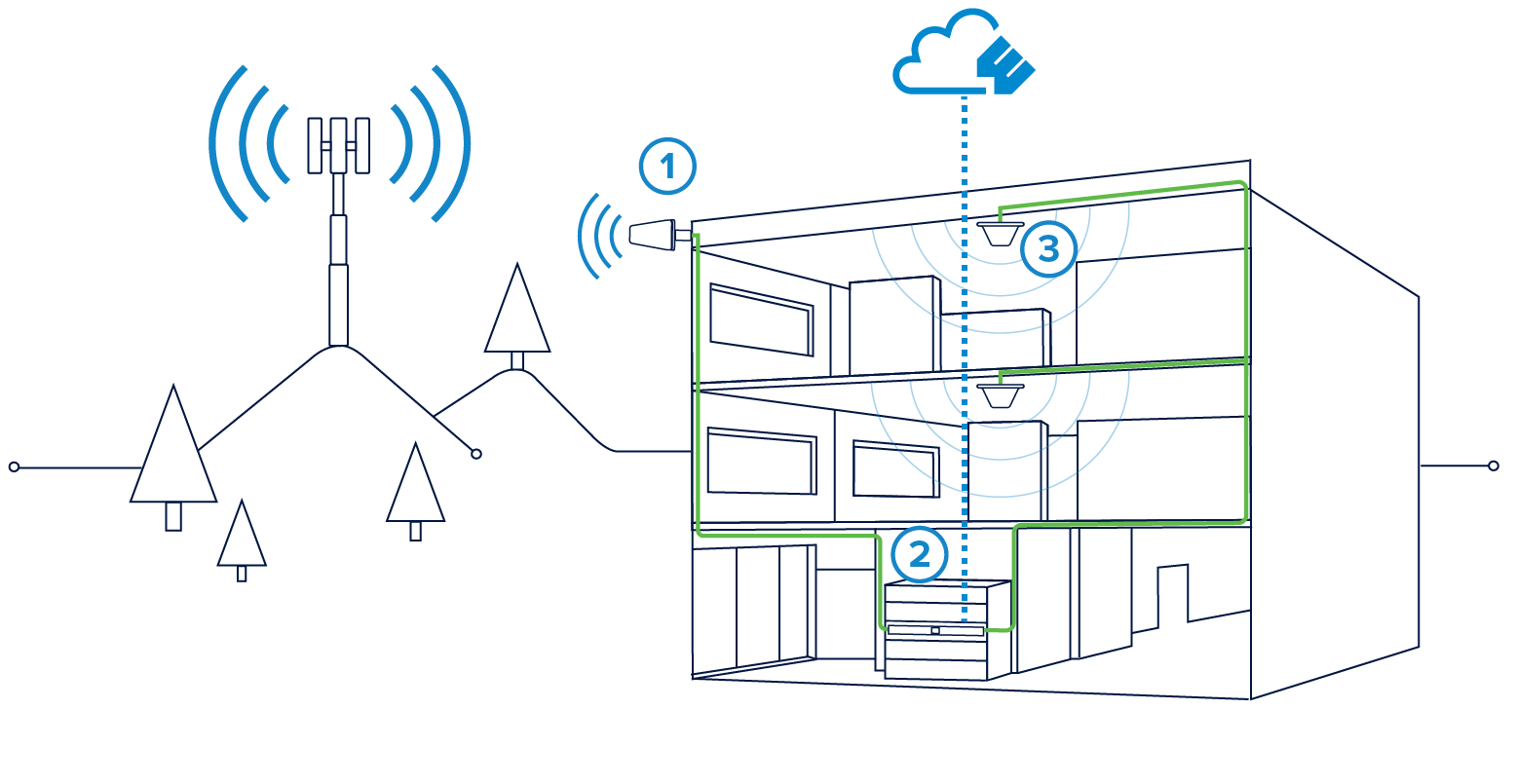

How it Works

Enterprise 1300R How it Works

1 - The powerful antenna receives cellular signal and delivers it to the booster.

2 - The booster amplifies the signal and serves as a relay between the cellular modem and the cell tower.
3 - The cellular modem performs more efficiently as it feeds data to the booster and stays connected to the network.

Key Features

  • Wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud
  • Remote management, monitoring, and adjustment of amplifier via smartphone or tablet
  • XDR Technology (eXtended Dynamic Range) automatically adjusts gain and will remain operational, even in the presence of a very strong outside signal
  • +26 dBm maximum uplink power, +17 dBm maximum downlink power
  • Covers up to 40,000 sq. ft. with enhanced cell signal on all available network speeds
  • Color LCD touchscreen display, indicating gain and power levels of each band, for easy antenna setup, control, and troubleshooting
  • Rack-mount installation
  • FCC-approved and compatible with all US mobile carrier networks
  • Three outdoor antenna ports for exclusive Multi-Tower Targeting Technology

Kit Includes

50 Ohm Wide Band Directional Antenna

50 Ohm Wide Band Directional Antenna

4G Dome Antenna (50 Ohm) x4

4G Dome Antenna (50Ohm) x4

Lightning Surge Protector With (50 Ohm) N-Female Connectors

Lightning Surge Protector with (50Ohm) N-Female Connectors

100 ft. Wilson-400 Ultra Low-Loss Cable (N-Male to N-Male) x5100 ft. Wilson-400 Ultra Low-Loss Cable (N-Male to N-Male) x5

2 ft. Wilson400 Cable

2 ft. Wilson 400 Ultra Low-loss Cable





Connectors N-Female
Dimensions 17.5 x 12 x 3.75 in

Band 25 1900 MHz

Band 4 1700/2100 MHz

Band 13 700 MHz

Band 5 850 MHz

Band 12/17 700 MHz


50 Ohm

Max Gain

70 dB


110 - 240 V AC, 50 - 60 Hz, 30 W


9.66 lbs
